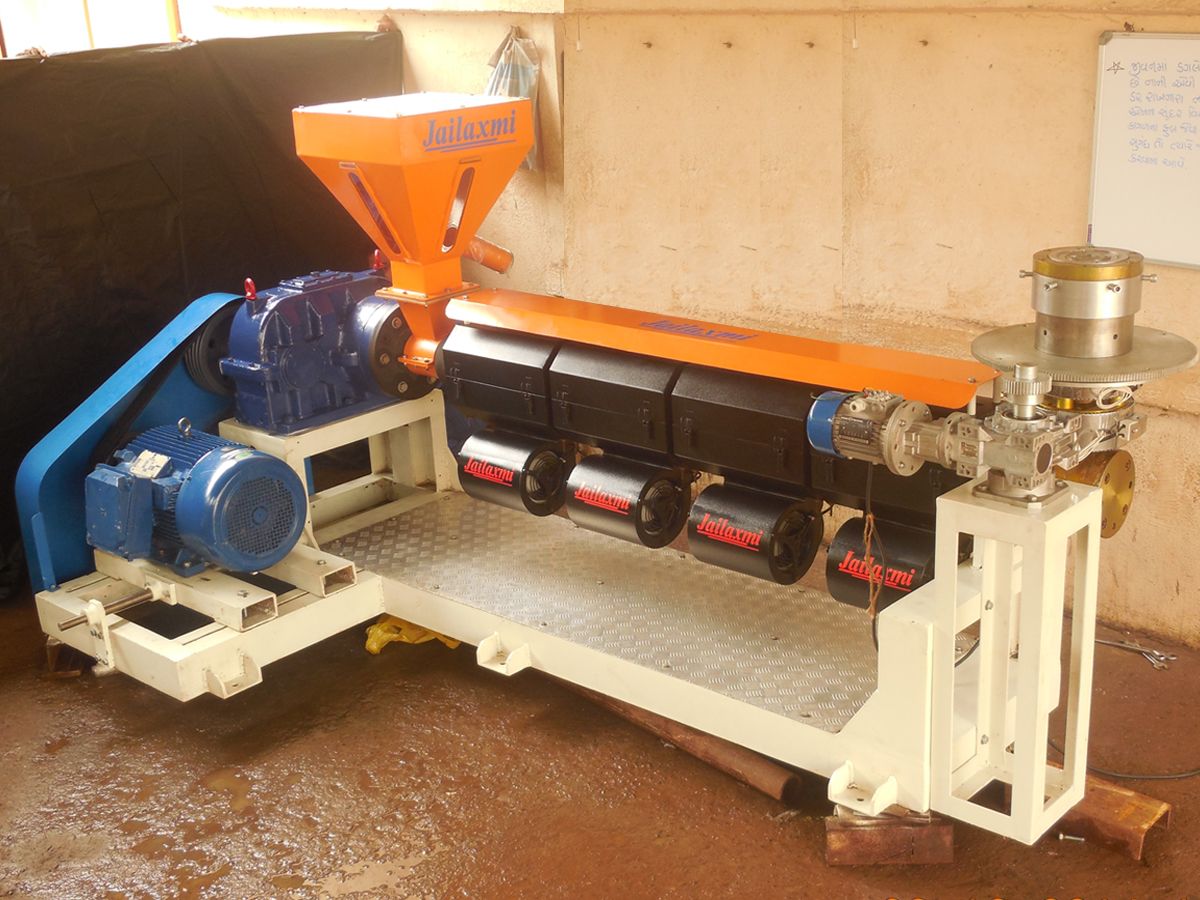

We offer the most complete product innovation in the Rigid PVC Plant
Jailaxmi is one of the reputed Rigid PVC Plant Manufacturer and Supplier. Jailaxmi provide R-PVC S-PVC Plants with variable screw diameters. Jailaxmi Rigid PVC Plant is known for giving excellent output. Jailaxmi Rigid PVC Plant is available at competitive prices.
Features
- Different application for Packing
- Nitrided Screw and Barrel made out from special nitro alloy steel for long life.
- Helical Gear Box with inbuilt Thrust Bearing.

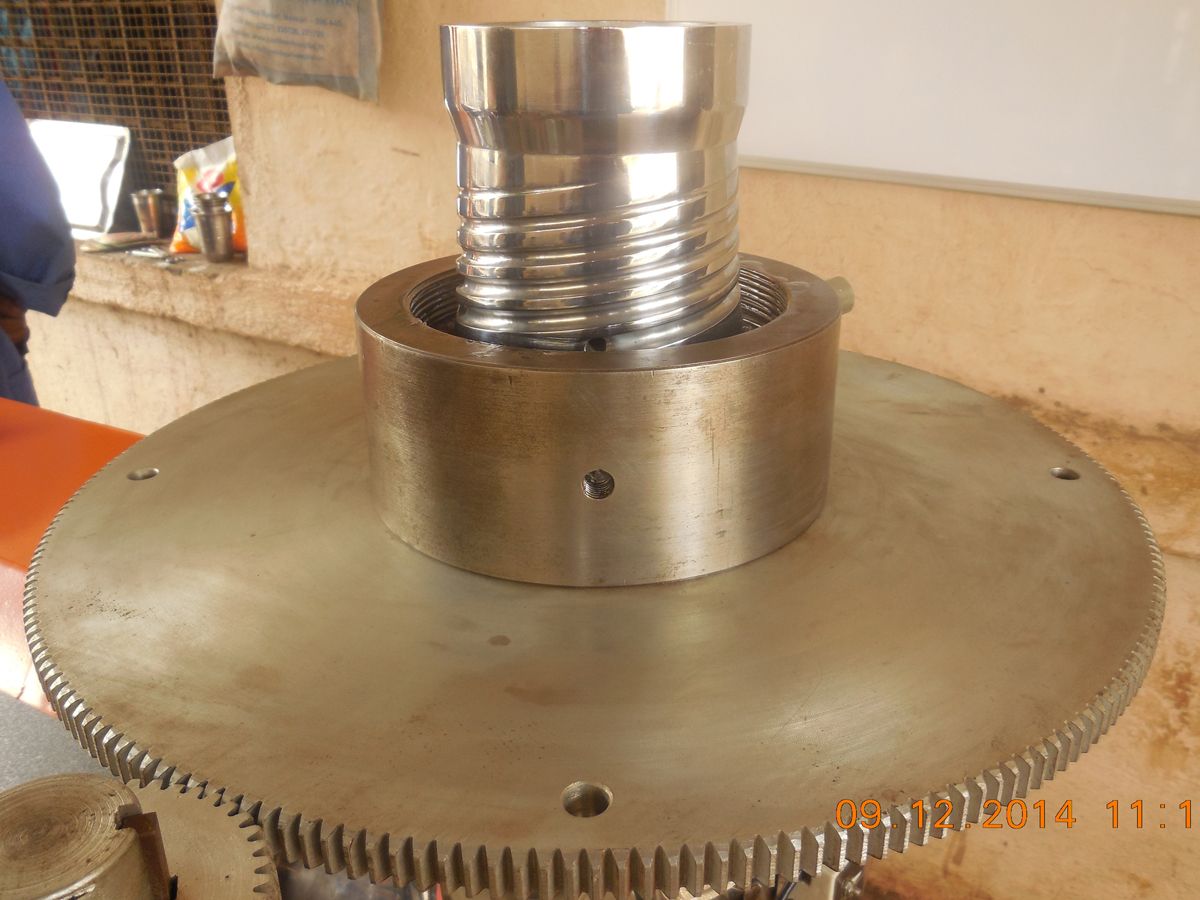

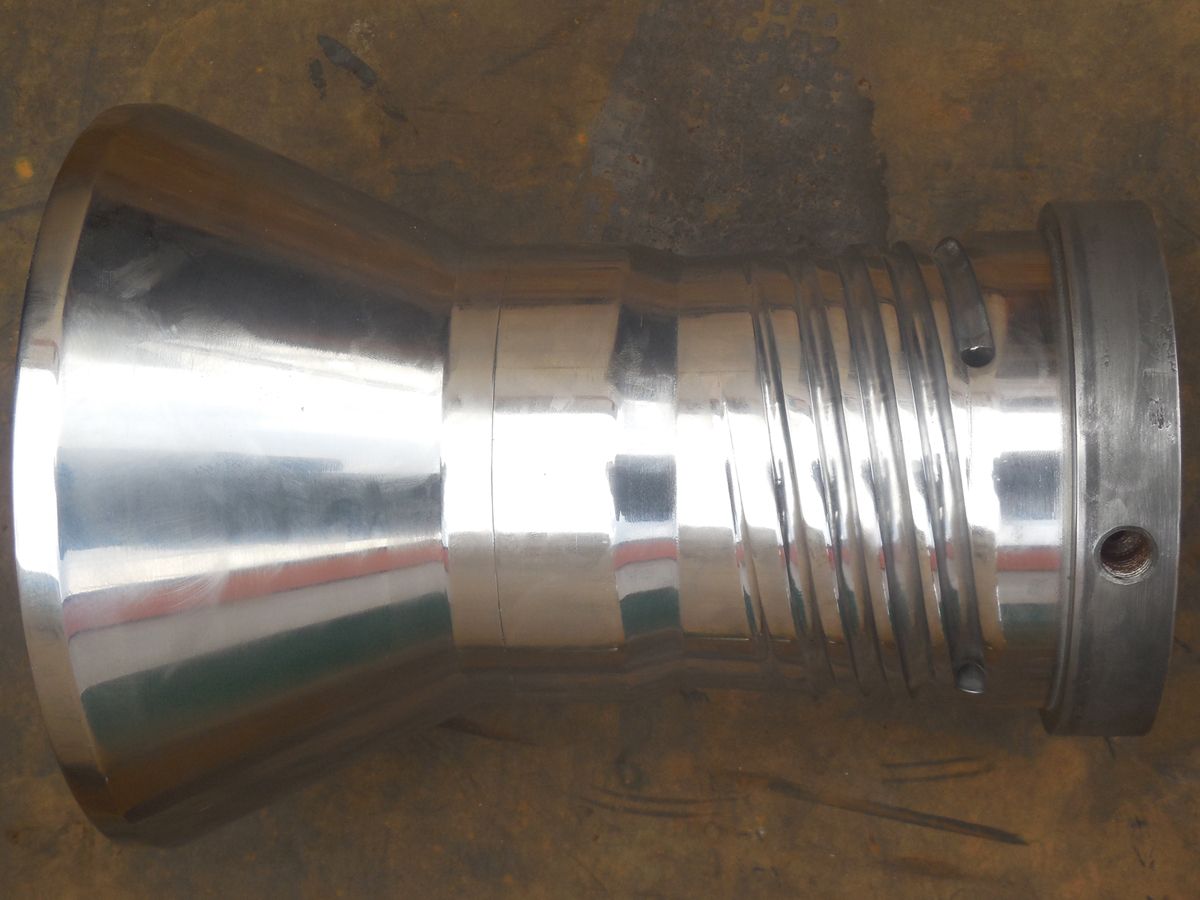

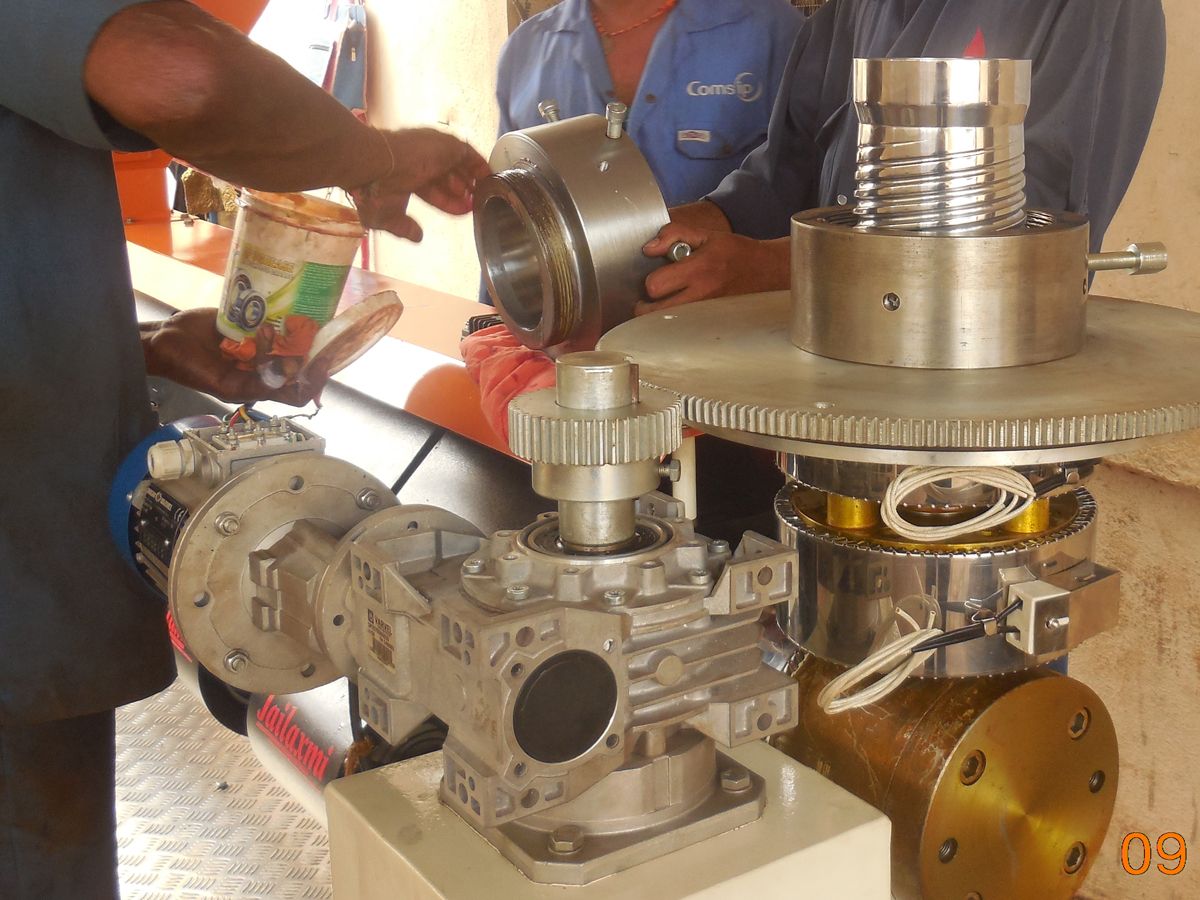

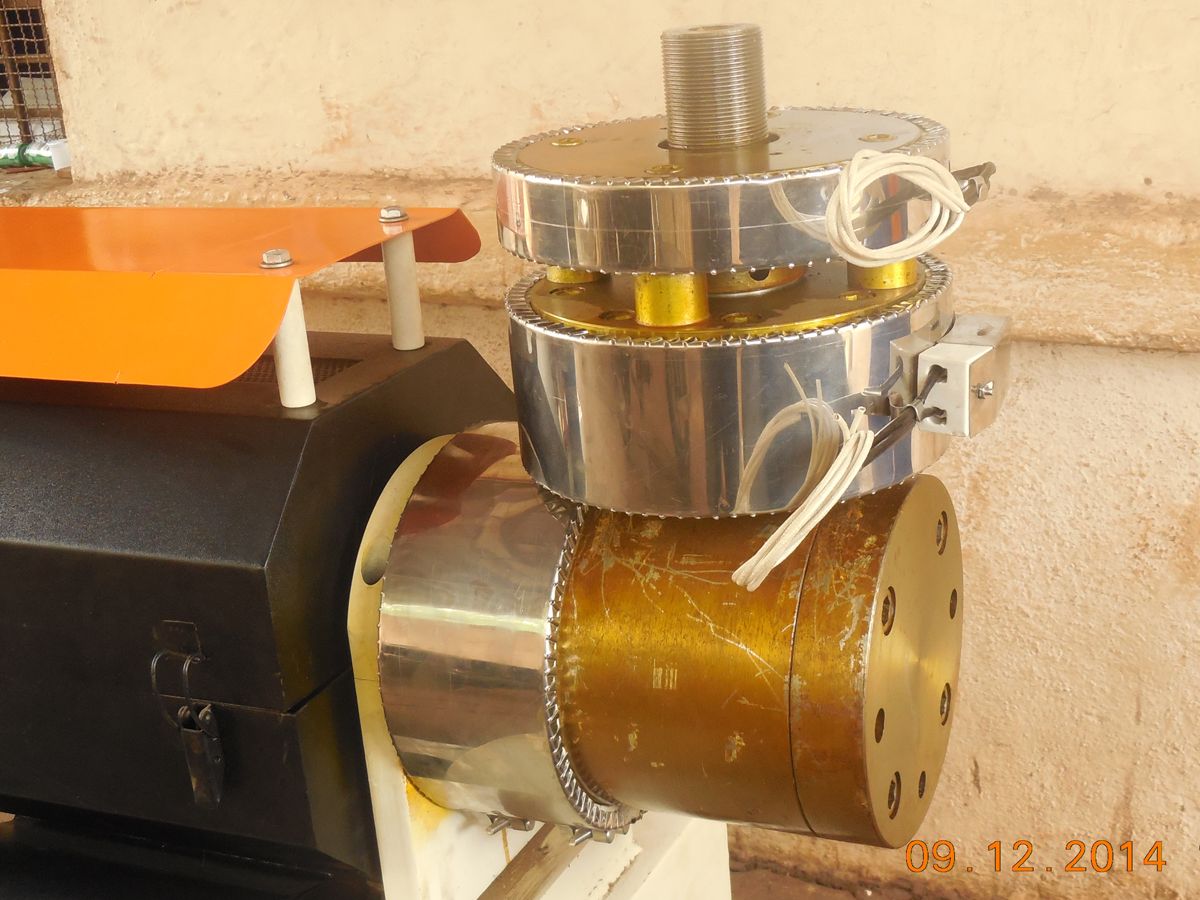

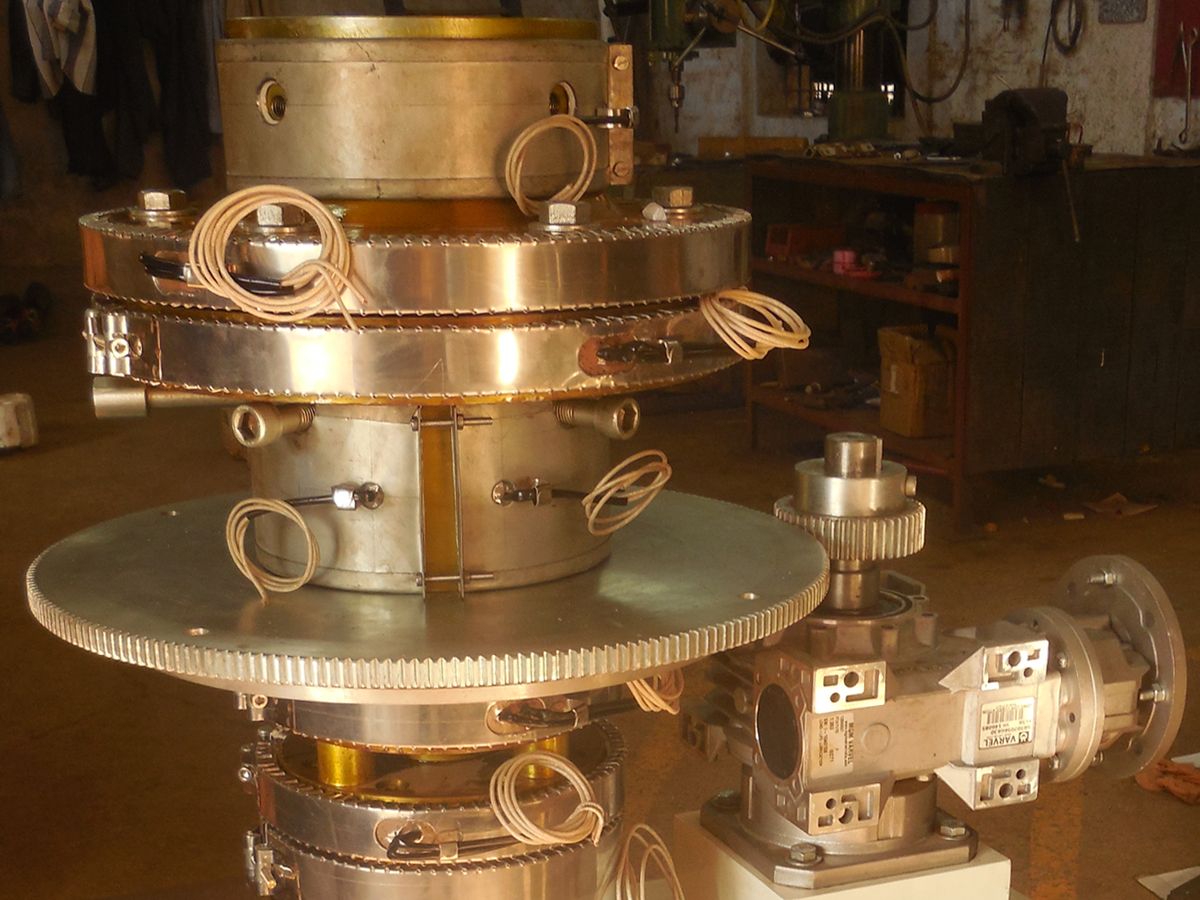

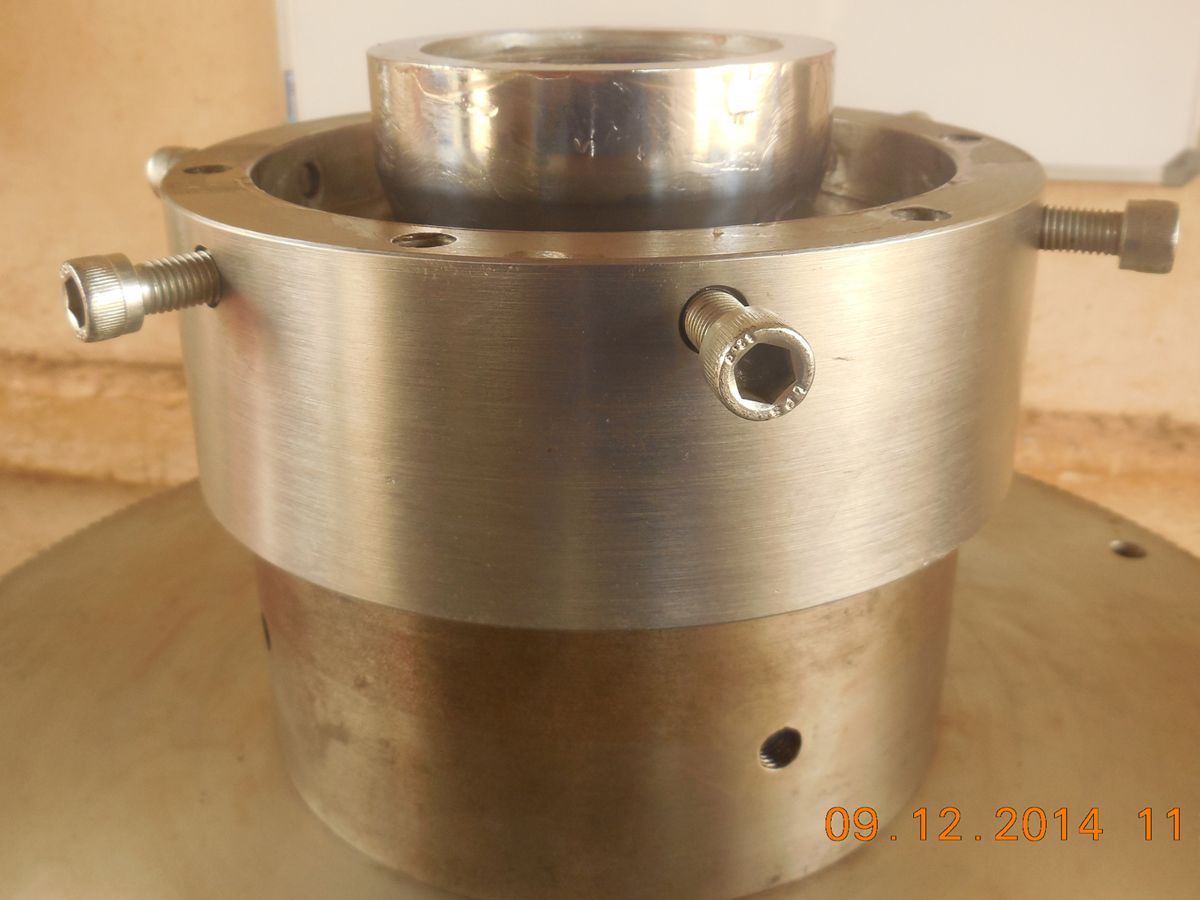

- Specially designed spiral type die.
- PID Temperature Controller.
- AC Motor Synchronization.
SPECIFICATIONS
| Model No. | JEC-2265 | JEC-2375 | JEC-2490 |
| Screw Diameter | 65 mm | 75 mm | 90 mm |
| Extruder Drive AC | 15 KW | 22 KW | 30 KW |
| L/D Ratio | 24:1 | 24:1 | 24:1 |
| Max Output(Kg/hr) | 60 | 100 | 140 |
| Lay flat Width | 44" | 55" | 55" |
| Thickness Range (Ga.) | 40-800 | 40-800 | 40-800 |
| Dies (Bottom Feed Type) mm | 150 | 175 | 200 |
| Nip Roll Size | 48" | 60" | 60" |
| Nip Roll Drive (AC variable) | 0.75 KW | 1.5 KW | 1.5 KW |
| Winder Spindle Drive (AC variable) | 0.75 KW | 1.5 KW | 1.5 KW |
| Winder | Four Station | Four Station | Four Station |
| Connected Load | 37 KW | 42 KW | 54 KW |
| Overall Dimensions(ft.) | 25' L X 25' W X 16' H | 25' L X 25' W X 16' H | 30' L X 30' W X 30'H |
